Thermoformed Plastic Trays: Buyer Guide, Process, and Supplier Checklist
How to Evaluate Thermoformed Plastic Trays for Industrial Sourcing
Thermoformed plastic trays are custom-shaped containers manufactured by heating and forming plastic sheets over molds. For industrial, automotive, medical, and OEM applications, the right tray design depends on material, thickness, forming depth, and supplier process control. Effective sourcing starts by matching tray specifications to the intended use, confirming manufacturing evidence, and preparing a complete RFQ with quality checkpoints.
Material and Thickness Selection for Thermoformed Trays
Selecting the correct plastic material and sheet thickness is the most critical decision for tray performance and cost. Common materials include ABS (impact resistance), PETG (clarity and chemical resistance), polycarbonate (high strength), and acrylic (optical clarity). Sheet thickness typically ranges from 1mm to 8mm for trays, with thicker sheets used for heavy-duty or deep-draw parts. Thicker sheets improve rigidity and stacking strength but increase forming cycle time and cost. Material choice should be based on:
- Application environment (temperature, chemicals, UV exposure)
- Required rigidity and impact resistance
- Transparency or color needs
- Export safety and regulatory requirements
| Material | Key Properties | Typical Use Cases |
|---|---|---|
| ABS | Impact resistance, easy to trim, paintable | Automotive, equipment housings, industrial trays |
| PETG | High clarity, chemical resistance, food contact | Medical, display, packaging, electronics |
| Polycarbonate | High strength, heat resistance, transparent | Protective shields, machine covers, deep trays |
| Acrylic | Optical clarity, scratch resistance | Display trays, advertising, covers |
Process Evidence and Quality Inspection Points

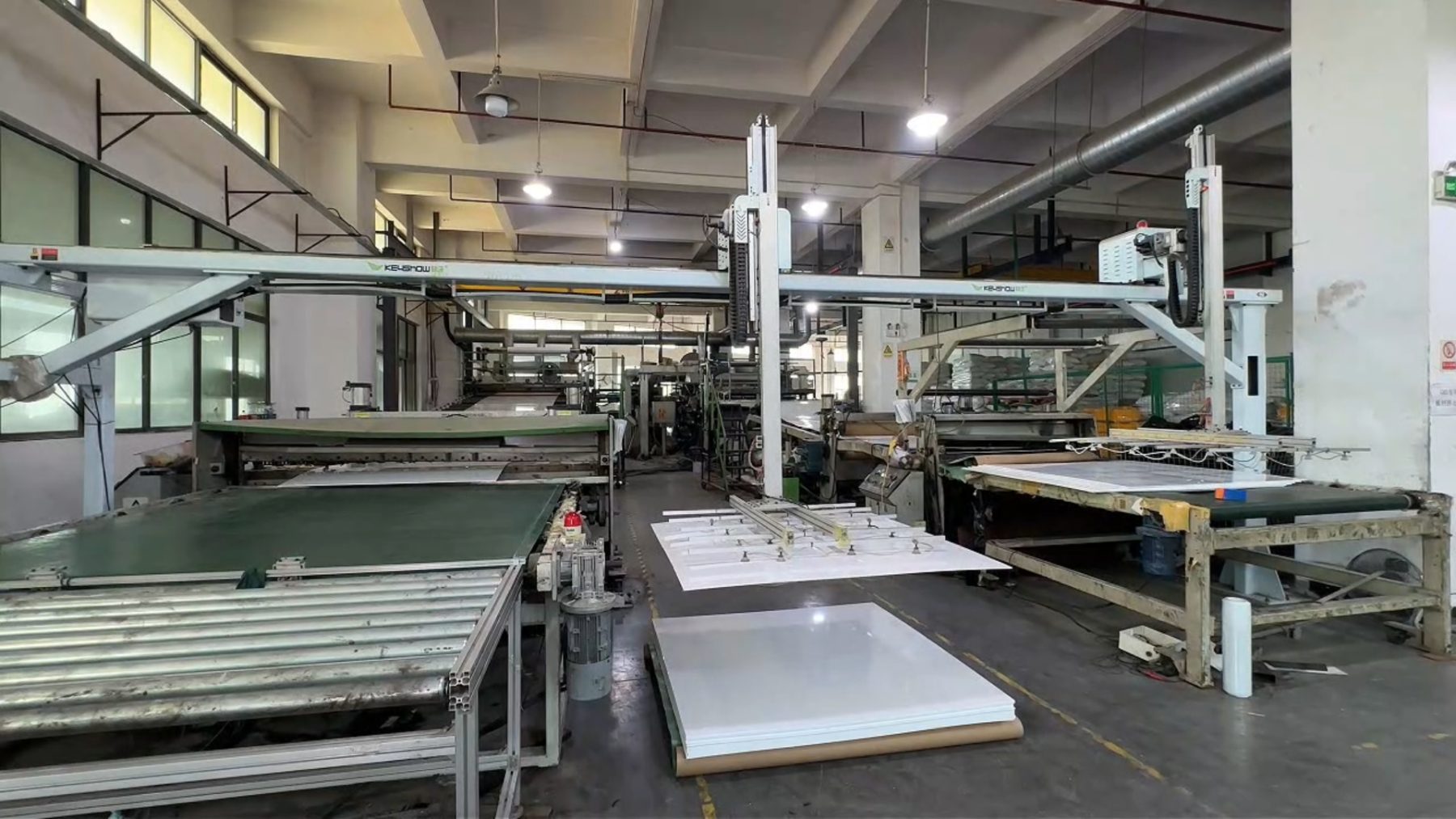

A reliable thermoforming supplier provides process transparency from sheet extrusion through forming, CNC trimming, and finishing. DitaiPlastic supports in-house sheet extrusion, mold/tooling, vacuum forming, 5-axis CNC trimming, and post-processing. Inspection checkpoints for trays should include:
- Material certificate and batch traceability
- Sheet thickness and uniformity checks
- Forming depth and cavity dimension measurement
- Edge finish and trimming accuracy (CNC evidence)
- Surface quality: no visible marks, bubbles, or warping
- Stacking fit and load test (for industrial trays)
For reference, product photos such as “20260603_thick-sheet-thermoforming_product-photo-02.jpg” and “20260603_petg-trays_product-photo-04.jpg” can be requested to verify material surface, edge, and forming quality.
RFQ Preparation and Supplier Comparison Checklist
A complete RFQ for thermoformed plastic trays should include:
- 2D/3D drawings or physical samples
- Material type and color (e.g., ABS black, PETG clear)
- Sheet thickness and tray dimensions (length, width, depth)
- Surface finish requirements (matte, gloss, texture)
- Expected order quantity and annual volume
- Tolerance and fit notes (especially for stacking or automated handling)
- Application details (temperature, load, chemical exposure)
- Packing and export shipping requirements
When comparing suppliers, review:
- In-house process capability (sheet extrusion, CNC trimming, finishing)
- Sample approval workflow and inspection reports
- Experience with export packaging and logistics
- Certifications (e.g., ISO 9001, IATF 16949)
- Evidence of similar tray projects (photos, references)
Common Mistakes and Practical Risk Controls
The most frequent sourcing mistakes for thermoformed trays include unclear material specs, underestimating required thickness, and skipping sample approval. To control risks:
- Always specify material grade and thickness in writing
- Request forming and trimming samples before mass production
- Inspect for warping, inconsistent thickness, or poor edge finish
- Confirm export packing method (e.g., tray stacking, protective film, carton type)
- Document all requirements in the PO and QC checklist
FAQ: Thermoformed Plastic Trays Sourcing
Which material should be used for a vacuum formed part?
Material selection depends on application needs: ABS for impact, PETG for clarity and chemical resistance, polycarbonate for high strength, and acrylic for optical use. Confirm with your engineering team and supplier.
How does sheet thickness affect rigidity, depth, and cost?
Thicker sheets provide more rigidity and allow deeper forming, but increase material cost and cycle time. For stacking trays or heavy loads, thickness above 2.5mm is common.
When should ABS, PETG, acrylic, or polycarbonate be selected?
ABS is preferred for industrial and automotive trays; PETG for medical, electronics, or food contact; polycarbonate for protective or deep trays; acrylic for display or advertising trays.
What project information should be prepared before requesting a quote?
Prepare drawings or samples, specify material and thickness, provide tray dimensions, surface finish, expected quantity, tolerance notes, application details, and packing/shipping requirements.
Can DitaiPlastic support custom vacuum forming from prototype to production?
Yes, public information confirms in-house support from prototyping, mold/tooling, vacuum forming, CNC trimming, finishing, assembly, quality control, to export packaging.
Can the factory provide finishing and post-processing?
DitaiPlastic offers CNC trimming, polishing, painting, silk screen printing, laser engraving, assembly, and quality inspection as listed on the public website.
Summary and Next Steps
Thermoformed plastic trays require careful matching of material, thickness, and forming process to the application. Reliable sourcing depends on clear RFQ details, supplier process evidence, and robust inspection. For custom tray projects or to review sample photos and process details, contact DitaiPlastic for technical support and export communication.
